ETICS Insulation Pressure Plate

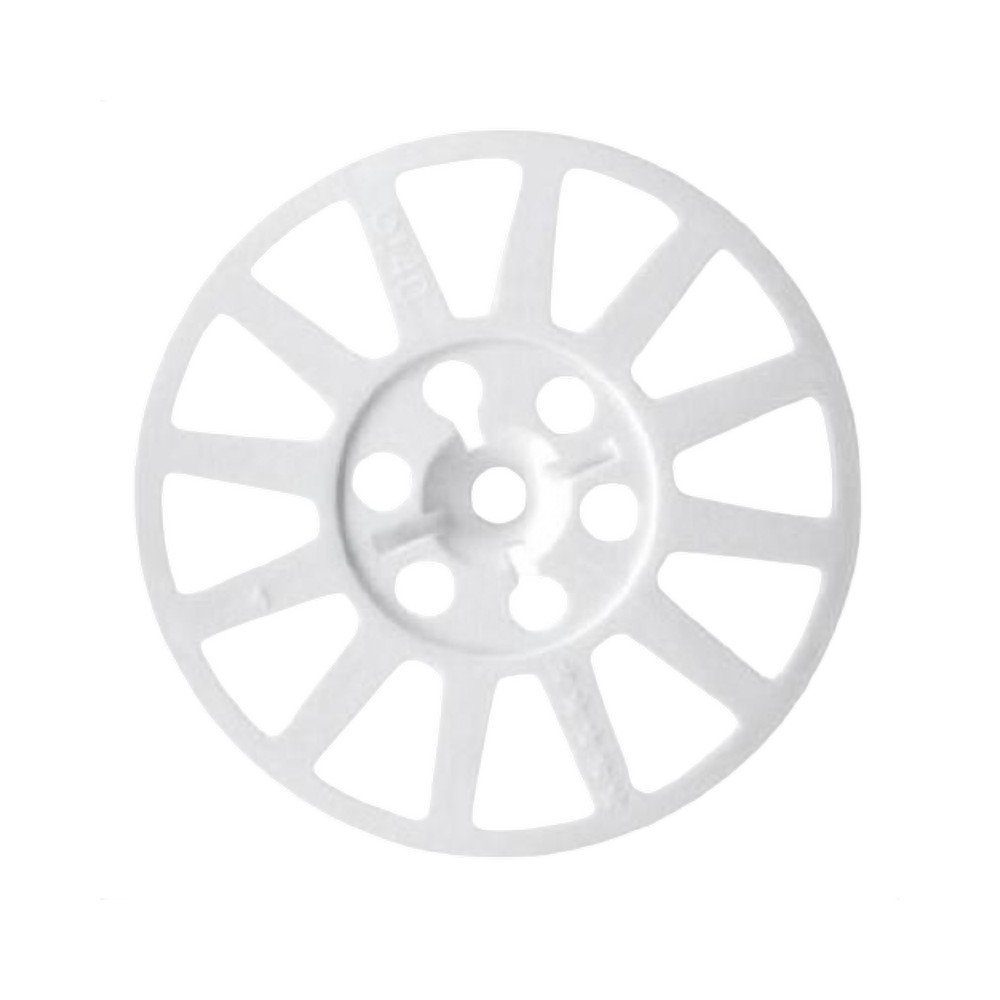

ETICS Fixing Pressure Plate – 60 mm | Reliable Insulation Support Disc

The ETICS Fixing Pressure Plate is a high-performance mounting component designed for securely attaching thermal insulation to building facades. Engineered to work in combination with compatible façade connectors, this pressure plate enhances the stability and load-bearing capacity of the entire insulation fixing system. Its wide 60 mm diameter ensures even pressure distribution across the surface of insulation panels, preventing damage and ensuring long-term performance. Manufactured from impact-resistant polypropylene copolymer, it is both durable and suitable for use in a variety of substrate types, including full and porous materials. This makes it a reliable, cost-effective solution for professional ETICS (External Thermal Insulation Composite Systems) applications.

Key Features:

• High-impact polypropylene: Strong and durable for long-term use

• 60 mm diameter: Provides excellent load distribution and panel support

• Flanged design: Improves stability and mechanical performance

• Universal compatibility: Suitable for both full and porous substrates

• Lightweight and efficient: Ensures easy handling and reduced installation time

Product Application:

The ETICS Fixing Pressure Plate is commonly used in thermal insulation systems for both residential and commercial buildings. It is ideal for securing EPS, mineral wool, and other façade insulation boards to structural substrates such as concrete, brick, or aerated concrete blocks. Installers, contractors, and facade specialists choose this product to improve the mechanical strength and reliability of insulation systems. Its economic design reduces material consumption while ensuring safety and performance, making it a smart choice for ETICS installations.

Instructions for Use:

1. Prepare the substrate – Ensure the wall surface is clean, level, and free of debris.

2. Select the correct fixing connector – Choose a compatible anchor (not included) suitable for the wall type and insulation material.

3. Position the plate – Place the ETICS Fixing Pressure Plate against the insulation panel at the pre-determined fixing point.

4. Drill and fasten – Drive the connector through the centre of the plate into the wall until flush. Ensure the plate sits flat against the insulation.

5. Repeat the process – Install the required number of fixings per board, based on system requirements and wind load specifications.

The ETICS Fixing Pressure Plate is a simple yet essential component in any high-quality insulation system. Its strength, compatibility, and ease of use make it a reliable solution for professionals focused on energy efficiency and facade durability.
