PVC Universal Window Reveal Bead with Mesh 2.5m

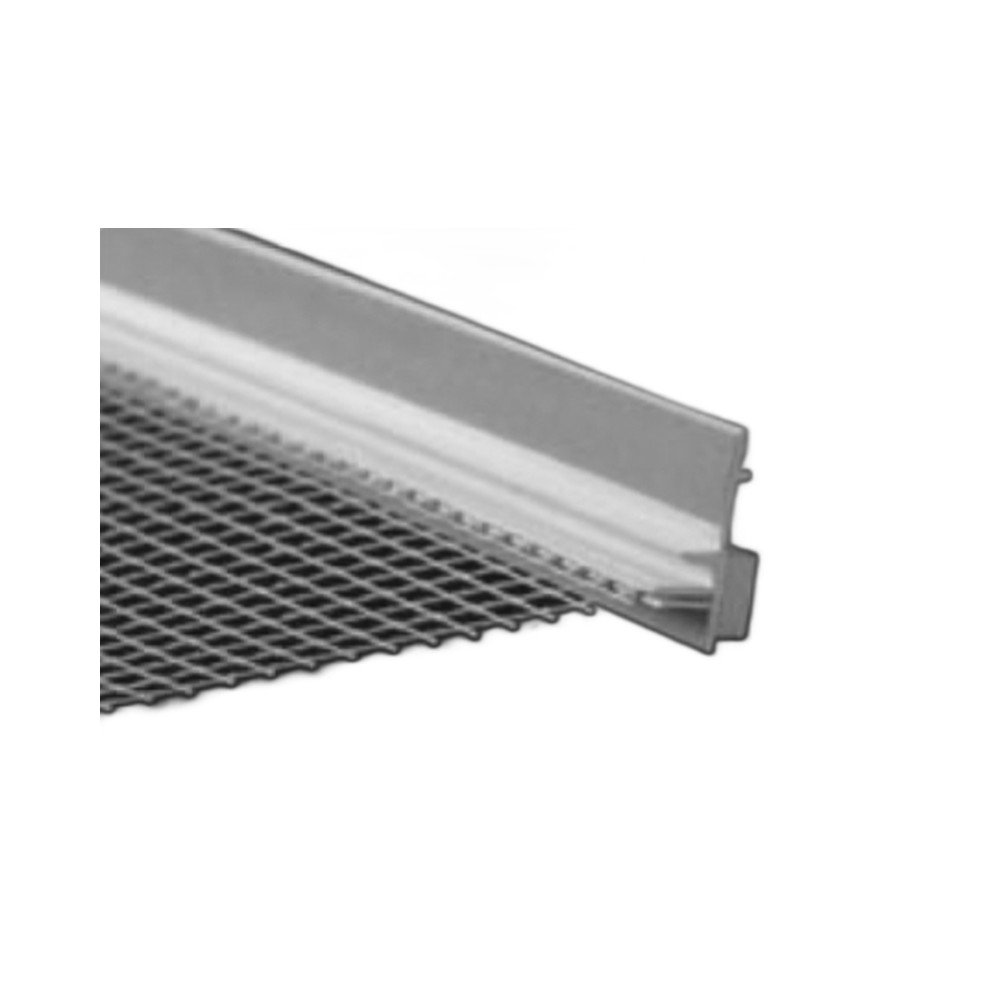

Universal PVC Window Strip with Mesh 2.5m – Perfect Finish for Window and Door Connections

The Universal PVC Window Strip with Mesh 2.5m is a high-performance profile designed for creating a durable, airtight, and visually clean connection between external plaster layers and window or door frames in EWI. Manufactured from UV-resistant PVC, this strip features a robust self-adhesive expansion tape that ensures long-term flexibility and prevents cracking due to building movements or temperature fluctuations. The integrated fiberglass mesh enables perfect bonding with plaster layers, while the pre-glued protective film flap ensures that window and door frames remain clean throughout the application process. With its universal compatibility, this strip is a reliable choice for both new-build and retrofit projects.

Key Features:

• UV-Resistant PVC – Long-lasting material ideal for external use

• Self-Adhesive Expansion Tape – Provides flexible and airtight sealing

• Pre-Applied Protective Film Flap – Keeps windows and doors clean during plastering

• Integrated Mesh – Ensures firm connection between the strip and plaster

• Standard Length – 2.5m – Efficient for large-scale applications

• Universal Fit – Compatible with various window and door frame types

Applications:

This universal strip is primarily used for connecting plaster layers to window and door frames in ETICS (External Thermal Insulation Composite Systems), especially TYTAN EOS. It is commonly used by façade contractors, plasterers, and insulation specialists to:

• Create clean and secure plaster terminations

• Prevent thermal bridging and air leakage

• Protect frame surfaces during plastering

Applicable in both residential and commercial construction, this profile improves performance, durability, and finish quality of the building envelope.

Instructions for Use:

1. Surface Preparation – Ensure the window/door frame is clean and dry.

2. Cut to Size – Trim the strip to the required length using standard shears.

3. Position and Attach – Press the self-adhesive expansion tape onto the edge of the window or door frame.

4. Apply Mesh – Embed the mesh into the base coat or adhesive mortar, smoothing it evenly.

5. Secure Protective Film – Pull the adhesive flap over the window or door frame and attach protective film.

6. Finish Plastering – Apply finishing coats while keeping the film in place. Remove the protective film after plaster dries.

Designed for reliability and ease of use, the Universal PVC Window Strip with Mesh 2.5m is the professional’s choice for finishing detail work in modern thermal insulation systems.
