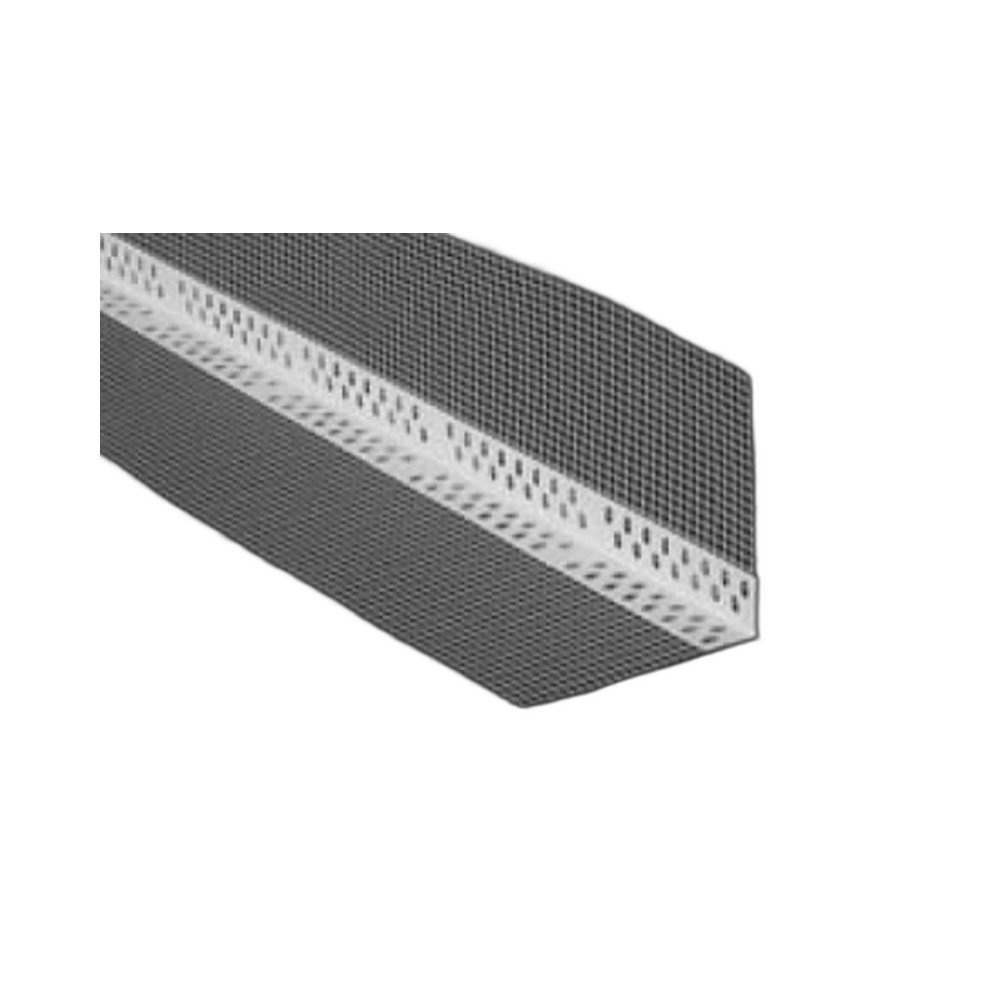

PVC Corner Bead with Mesh for EOS – 2.5m (10/10)

PVC Corner Bead with Mesh for EOS – 2.5m (10/10)

The PVC Corner Bead with Mesh for EOS is a high-performance corner reinforcement profile designed specifically for use in TYTAN EOS thermal insulation systems. With a standard length of 2.5 meters and 10/10 mesh configuration, this corner bead ensures long-lasting protection and structural stability for all external corners in ETICS (External Thermal Insulation Composite Systems). Made of durable, corrosion-resistant PVC and reinforced with fiberglass mesh, it offers exceptional resistance to point deformation and cracking – even under mechanical stress or shifting substrates. This makes it an essential component for achieving both functional and aesthetic precision in façade insulation projects.

Key Features:

• Durable PVC construction – resists cracking, warping, and deformation.
• 10/10 fiberglass mesh – provides strong adhesion and structural reinforcement.
• Corrosion-resistant – no risk of rust, unlike metal profiles.
• Impact-resistant – protects external corners from damage during and after installation.
• Weatherproof & UV-resistant – ideal for external use in all climate conditions.
• Lightweight and easy to cut – simplifies installation on-site.

Product Application:

The PVC Corner Bead with Mesh is designed for use in external thermal insulation systems, especially in the TYTAN EOS system, and is applied at all external corners of a building to:

• Reinforce and protect vulnerable edges
• Prevent cracking and mechanical damage
• Ensure clean, straight corner lines

It is widely used by:

• Insulation and façade contractors
• General building professionals
• Renovation and thermal efficiency specialists

Choosing this product helps maintain the integrity of external corners while significantly improving the durability and appearance of the insulation finish.

Instructions for Use:

1. Prepare the Surface: Ensure all surfaces are clean, dry, and free from dust or debris.
2. Measure and Cut: Cut the corner bead to the required length using a fine-toothed saw or utility knife.
3. Apply Adhesive/Base Coat: Apply the first layer of adhesive or base coat render to the corner area.
4. Embed the Profile: Position the corner bead along the edge and press it firmly into the adhesive, ensuring full contact of the mesh with the substrate.
5. Smooth and Align: Use a trowel to smooth out the mesh and ensure the profile sits straight and flush.
6. Overlap Mesh: Overlap adjacent mesh sections by at least 10cm to ensure continuous reinforcement.
7. Final Coating: Apply additional layers of base coat and finish as needed.

The PVC Corner Bead with Mesh for EOS is a smart investment for any thermal insulation project—offering superior corner protection, long-term performance, and ease of installation for professionals who demand quality and durability.
