U Plinth Starter Track Aluminium 30–100mm – A Solid Foundation for Thermal Insulation Systems

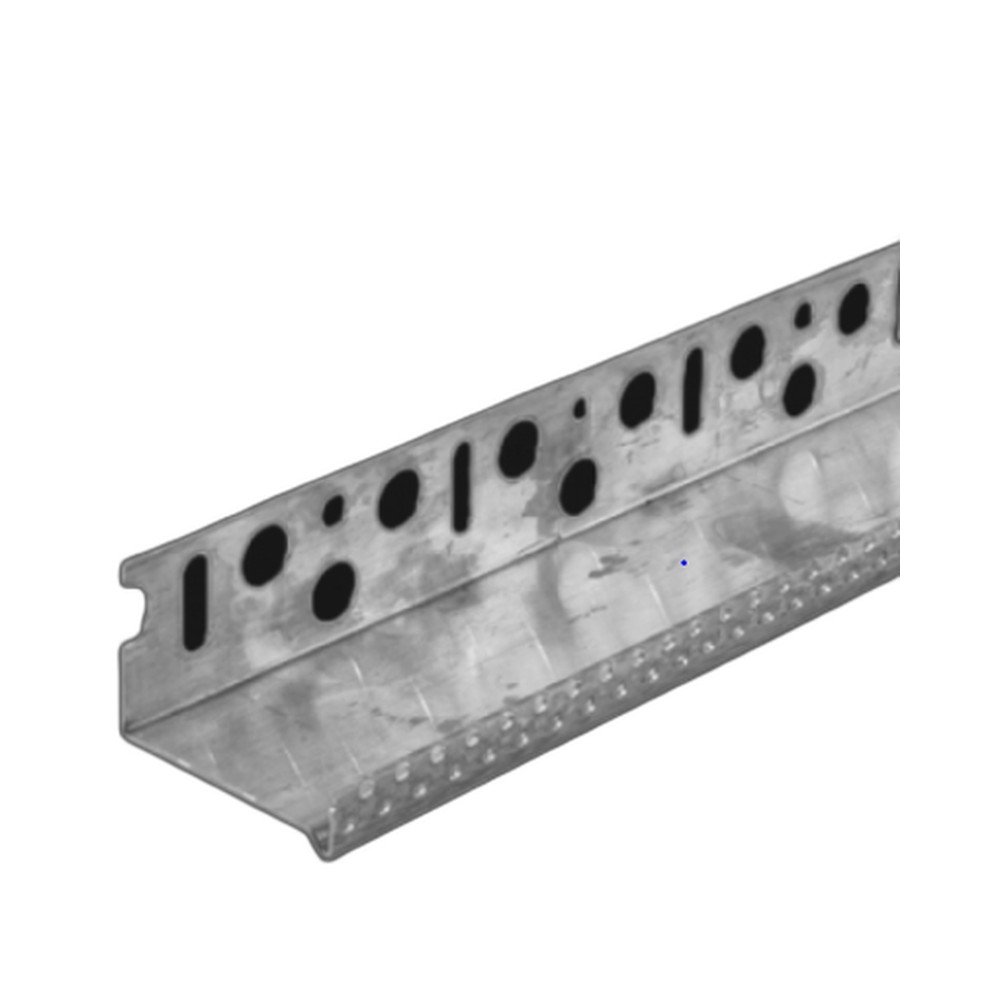

The U Plinth Starter Track Aluminium 30–100mm is a robust, high-quality aluminium base profile designed to provide a secure and precise starting point for ETICS (External Thermal Insulation Composite Systems). Manufactured from thick, corrosion-resistant aluminium (0.6 mm), this starter track ensures accurate leveling of the first row of insulation boards, while protecting the system from mechanical damage, rodents, and moisture ingress. It features an integrated drip edge, allowing for proper water runoff and preventing water accumulation at the base of the façade. Available in multiple height options (30, 50, 80, 100 mm), it offers versatile solutions for different insulation thicknesses.

Key Features:

• Heavy-duty aluminium (0.6 mm) – Corrosion-resistant and impact-resistant

• Precise leveling – Ensures straight and stable placement of insulation boards

• Integrated drip edge – Directs water away from the façade to avoid moisture damage

• Rodent protection – Seals and protects the base of the insulation system

• Multiple sizes available – Suitable for 30, 50, 80, and 100 mm insulation boards

• Lengths up to 2.5 m – Easy handling and faster installation

Applications:

The U Plinth Starter Track is used at the base of external insulation systems to support the first row of EPS, XPS, or mineral wool boards. Its key functions are:

• Providing a level, stable starting point for thermal insulation

• Preventing uneven board placement and long-term façade deformation

• Allowing proper water drainage and protecting the base of the wall

This profile is commonly used by ETICS installers, façade contractors, and insulation specialists on residential, commercial, and industrial buildings.

Instructions for Use:

1. Measure and Mark – Determine the height of the track based on insulation thickness (30–100 mm).

2. Cut to Length – Trim the profile to fit using metal shears or an appropriate saw.

3. Mount the Track – Fix the profile to the base of the wall using mechanical fasteners (e.g., dowels or screws) spaced approx. every 30–50 cm.

4. Check Level – Use a spirit level to ensure the track is perfectly horizontal across the façade.

5. Install Insulation Boards – Insert the first row of boards into the profile and proceed with system installation.

The U Plinth Starter Track Aluminium 30–100mm is an essential component for ensuring durability, precision, and long-term performance in any external thermal insulation project.
