External wall insulation systems - complete guide to materials, layers and installation

External wall insulation systems are one of the most effective ways to improve a building’s energy efficiency, reduce heating costs, and upgrade façade aesthetics at the same time. But choosing the right system is not just about picking insulation boards – it’s about understanding how all components work together as a complete, compatible solution.

This guide explains everything you need to know: from system structure and materials to cladding options, compatibility, and real-world selection tips.

Try our free EWI calculator
View external wall insulation systems
worker installing mineral wool external wall insulation system on wall

What are external wall insulation systems?

External wall insulation system (EWI systems) are multi-layered solutions applied to the exterior walls of a building to improve thermal performance and protect the structure.

Instead of insulating from the inside, EWI wraps the building envelope from the outside, eliminating thermal bridges and stabilizing indoor temperatures.

A typical system includes:

  • Insulation boards (e.g. EPS, mineral wool)
  • Adhesives and mechanical fixings
  • Reinforcement layer (mesh + base coat)
  • Finishing layer (render or cladding)

This layered approach ensures that all elements work together – structurally, thermally, and visually.

Why external insulation is more effective than internal solutions

From a technical and energy-efficiency perspective, external insulation offers clear advantages over internal insulation, especially when considering the long-term external wall insulation cost.

Structure of an external wall insulation system

Understanding the system layer-by-layer is crucial when selecting the right materials.

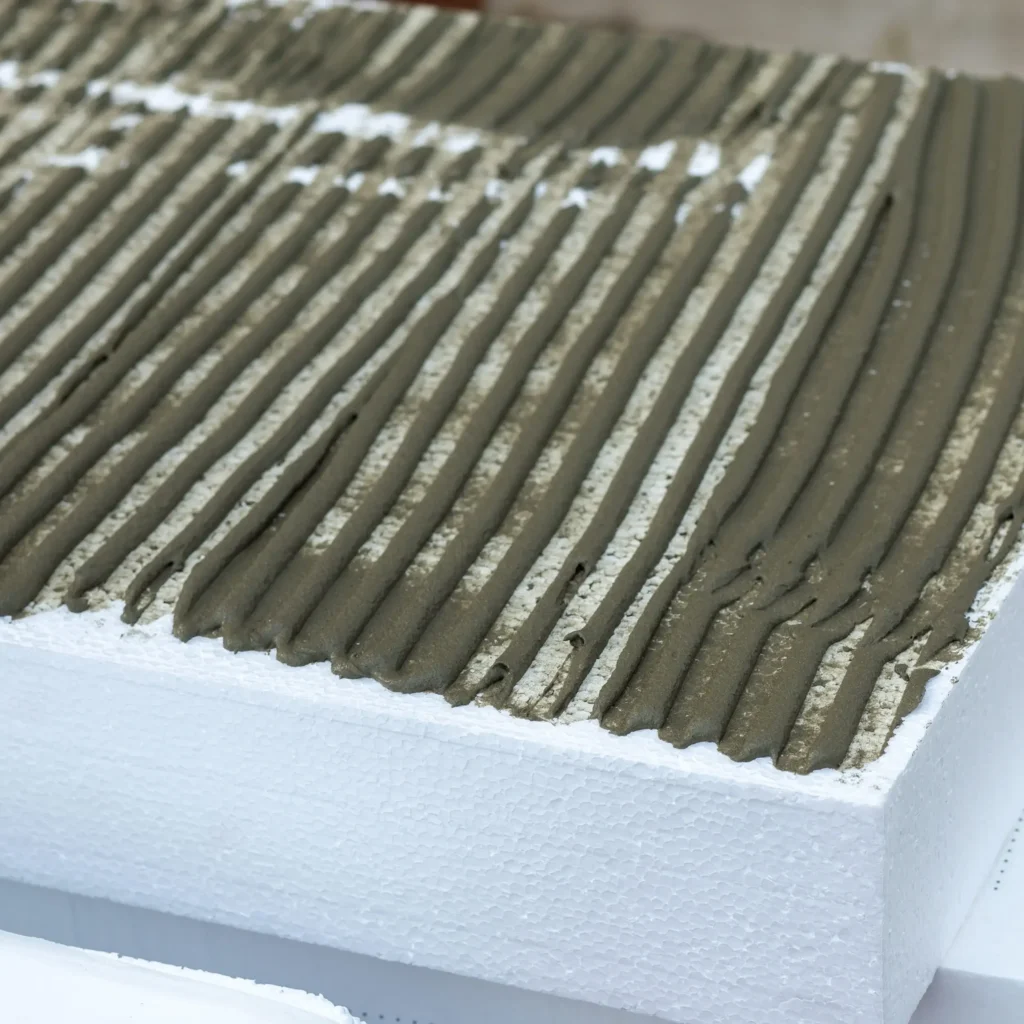

1. Adhesive layer

Used to bond insulation boards to the substrate. High-quality adhesive ensures durability and proper load distribution.

2. Insulation boards

The core of the system. The most commonly used external wall insulation materials include:

Key benefits::

  • Eliminates thermal bridges (corners, slabs, joints)
  • Maintains internal living space
  • Protects structural walls from temperature fluctuations
  • Improves airtightness of the building
  • Extends building lifespan

In modern construction and renovation, external insulation cladding systems are considered the standard approach across Europe.

EPS (expanded polystyrene)

  • Most popular solution
  • Lightweight and cost-effective
  • Good thermal insulation (lambda ~ 0.031-0.040)
  • Easy to install

Mineral wool

  • Higher fire resistance (non-combustible)
  • Better acoustic performance
  • Vapor permeable

PIR / Phenolic boards (less common)

  • Very high insulation performance
  • Used in premium or space-limited projects

Choosing the right board depends on:

  • Budget
  • Fire regulations
  • Building type
  • Moisture conditions

3. Mechanical fixings

Fixings secure the insulation boards mechanically to the wall. Two main approaches:

  • Adhesive-only (for smaller, low-rise building)
  • Adhesive + mechanical fixings (recommended standard)

Mechanical fixings:

  • Improve wind resistance
  • Ensure long-term stability
  • Arę required for most UK and EU regulations

4. Reinforcement layer

This layer consists of:

  • Base coat (adhesive mortar)
  • Fiberglass mesh

It’s role:

  • Protect insulation from cracks
  • Distribute stress across the façade
  • Prepare surface for finishing

5. Finishing layer - render or cladding

This is where aesthetics and protection come together.

Render (thin-coat plaster)

  • Silicone, acrylic or mineral
  • Breathable and weather-resistant
  • Available in many textures and colors
  • External insulation cladding

Increasingly popular alternative:

  • Composite panels
  • Decorative boards
  • Brick slips

External wall insulation cladding adds durability and design flexibility while maintaining insulation performance.

External wall insulation materials - how to choose the right ones

Selecting materials is not about choosing the “best” product individually – it’s about choosing a system where all components are compatible.

Key selection factors:

1. Compatibility

Always use system-certified components (same manufacturer or approved combination).

2. Building type

  • Residential house → EPS is usually sufficient
  • High-rise / public building → mineral wool often required

3. Climate conditions

  • High humidity → breathable systems (mineral wool + silicone render)
  • Strong winds → reinforced fixing and anchors

4. Budget vs performance

EPS often the best cost-to-performance ratio, while mineral wool provides higher fire safety and acoustic benefits.

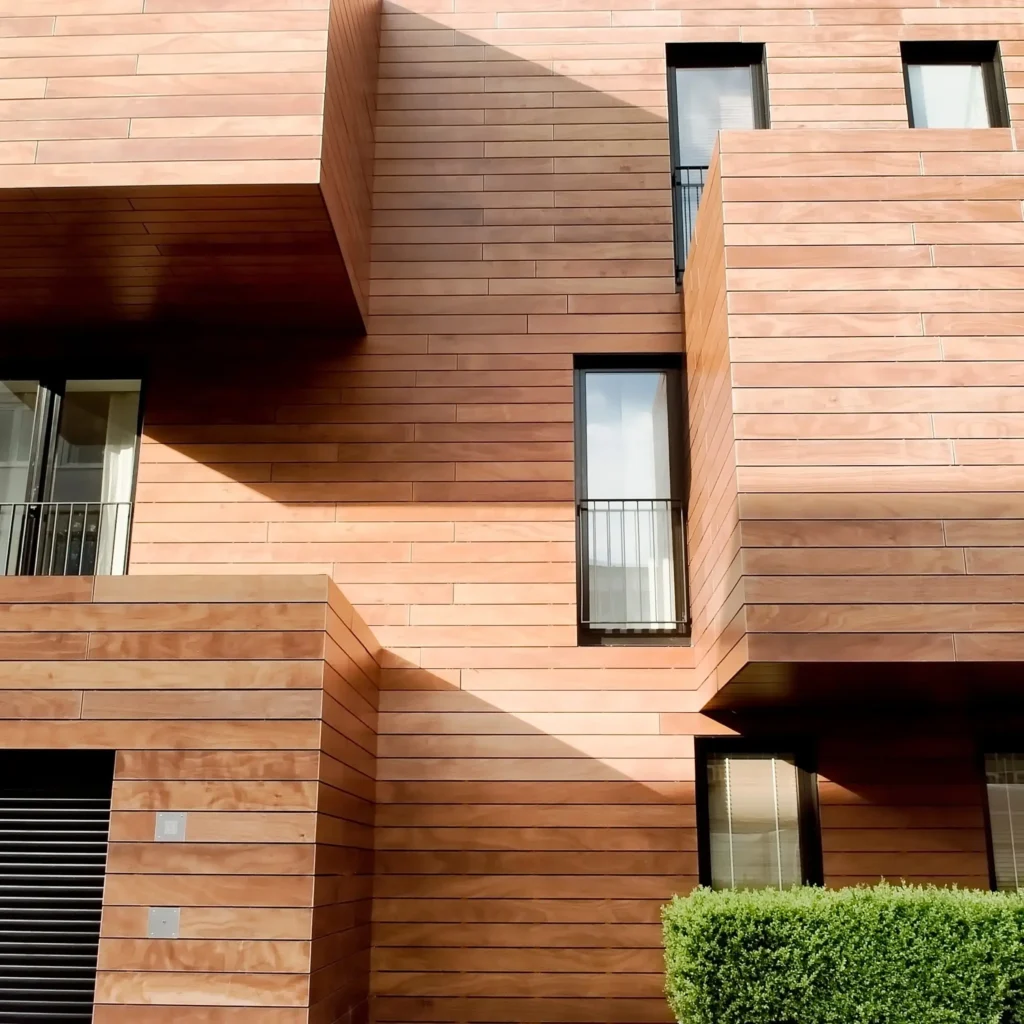

External wall insulation cladding vs traditional render

Choosing between render nd cladding depends on both technical and visual goals.

Render:

  • Lower cost
  • Faster installation
  • Clean, modern look

Insulation cladding:

  • Higher durability
  • Premium aesthetic (wood, stone, brick effect)
  • Better mechanical resistance

In many modern projects, external wall insulation cladding is used to combine energy efficiency with architectural design.

Common mistakes when choosing an EWI system

Even high-quality materials won’t perform well if the system is poorly designed.



Avoid these mistakes:

  • Mixing incompatible products from different manufacturers
  • Using insufficient fixings (risk of detachment)
  • Ignoring substrate preparation
  • Choosing wrong insulation thickness
  • Poor detailing around windows and edges

A system approach is always safer than product-based decisions.

System compatibility - why it matters

External wall insulation systems are tested and approved as complete solutions.

Using a full system ensures:

  • Warranty protection
  • Proven durability
  • Compliance with building standards

Mixing random components may seem cheaper, but often leads to:

  • Cracking
  • Moisture issues
  • Reduced lifespan

Practical tips from industry experience

After years of working with EWI systems, a few rules consistently apply:

  • Always over-spec fixings in windy areas
  • Don’t compromise on base coat quality
  • Use mesh properly embedded (not on top)
  • Plan façade details before installation starts
  • Work with trusted brands and suppliers



These small details make a huge difference in long-term performance.

FAQ - External wall insulation systems

What is the best insulation material for external walls?

EPS is the most commonly used due to its cost-effectiveness, while mineral wool is preferred for fire safety and breathability.

Typically between 100 mm and 200 mm, depending on building regulations and desired energy performance.

Most buildings can be insulated externally, but substrate condition and structural integrity must be assessed first.

Not necessarily better – just different. Cladding offers more durability and design options, while render is more economical.

A properly installed system can last 25-40 years or more with minimal maintenance.
